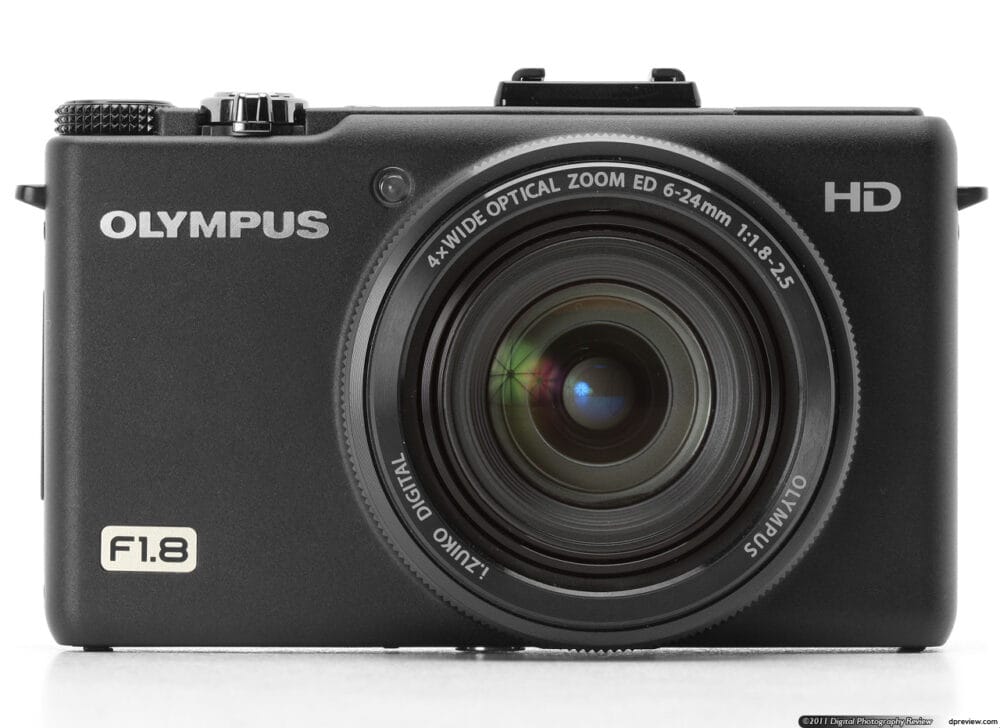

Olympus XZ-1 Specifications - Olympus XZ-1 Sample photos - Explore a collection of sample images captured with the Olympus XZ-1.
| Body type | ||
|---|---|---|
| Body type | Compact | |
| Sensor | ||
| Max resolution | 3664 x 2752 | |
| Other resolutions | 3648 x 2736, 3648 x 2056, 3648 x 2432, 3200 x 2400, 3200 x 1800, 3216 x 2144, 2736 x 2736, 2400 x 2400, 2560 x 1920, 2560 x 1440, 2544 x 1696, 1920 x 1920, 1600 x 1200, 1536 x 864, 1584 x 1056, 1296 x 864, 1280 x 960, 1280 x 720, 1216 x 1216, 1024 x 768, 1024 x 576, 1008 x 672, 960 x 960, 768 x 768, 640 x 480, 640 x 360, 624 x 416, 480 x 480 | |
| Image ratio w:h | 1:1, 4:3, 3:2, 16:9 | |
| Effective pixels | 10 megapixels | |
| Sensor size | 1/1.63″ (8.07 x 5.56 mm) | |
| Sensor type | CCD | |
| Processor | TruePic V | |
| Image | ||
| ISO | Auto (100 – 800), 100, 200, 400, 800, 1600, 3200, 6400 | |
| White balance presets | 6 | |
| Custom white balance | Yes (1) | |
| Image stabilization | Sensor-shift | |
| Uncompressed format | RAW | |
| Optics & Focus | ||
| Focal length (equiv.) | 28–112 mm | |
| Optical zoom | 4× | |
| Maximum aperture | F1.8–2.5 | |
| Autofocus |
|
|
| Digital zoom | Yes (4x) | |
| Manual focus | Yes | |
| Normal focus range | 60 cm (23.62″) | |
| Macro focus range | 1 cm (0.39″) | |
| Number of focus points | 11 | |
| Screen / viewfinder | ||
| Articulated LCD | Fixed | |
| Screen size | 3″ | |
| Screen dots | 614,000 | |
| Touch screen | No | |
| Screen type | OLED | |
| Live view | Yes | |
| Viewfinder type | Electronic (optional) | |
| Photography features | ||
| Minimum shutter speed | 60 sec | |
| Maximum shutter speed | 1/2000 sec | |
| Aperture priority | Yes | |
| Shutter priority | Yes | |
| Manual exposure mode | Yes | |
| Subject / scene modes | Yes | |
| Built-in flash | Yes (Pop-up) | |
| Flash range | 8.60 m (ISO 800) | |
| External flash | Yes (via hot-shoe) | |
| Flash modes | Auto, On, Off, Red-Eye, Fill-in | |
| Continuous drive | 2.0 fps | |
| Self-timer | Yes (2 or 12 sec) | |
| Metering modes |
|
|
| Exposure compensation | ±2 (at 1/3 EV steps) | |
| WB Bracketing | Yes (-/+ 7 steps in A-B/G-M axis) | |
| Videography features | ||
| Resolutions | 1280 x 720 (30 fps), 640 x 480 (30 fps) | |
| Format | Motion JPEG | |
| Microphone | Mono | |
| Storage | ||
| Storage types | SD/SDHC/SDXC | |
| Storage included | 55 MB | |
| Connectivity | ||
| USB |
USB 2.0 (480 Mbit/sec) |
|
| HDMI | Yes (Mini HDMI type-D) | |
| Remote control | Yes (Optional RM-UC1) | |
| Physical | ||
| Environmentally sealed | No | |
| Battery | Battery Pack | |
| Battery description | Lithium-Ion Li-50B rechargeable battery & charger | |
| Battery Life (CIPA) | 320 | |
| Weight (inc. batteries) | 275 g (0.61 lb / 9.70 oz) | |
| Dimensions | 111 x 65 x 42 mm (4.37 x 2.56 x 1.65″) | |
| Other features | ||
| Orientation sensor | Yes | |
| GPS | None | |
