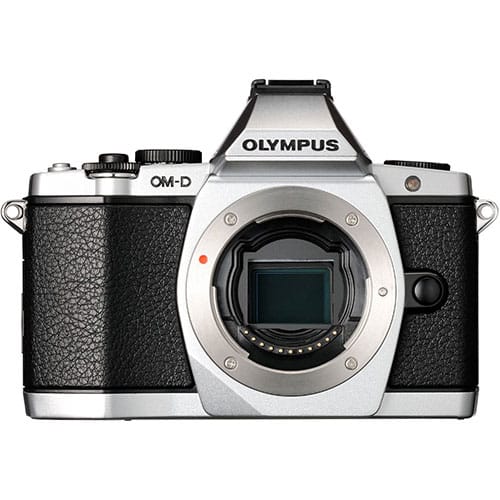

Olympus OM-D E-M5 Specifications - Olympus OM-D E-M5 Sample photos - Explore a collection of sample images captured with the Olympus OM-D E-M5.
| Body type | ||
|---|---|---|
| Body type | SLR-style mirrorless | |
| Sensor | ||
| Max resolution | 4608 x 3456 | |
| Other resolutions | 4608 x 3072, 4608 x 2592, 3456 x 3456, 2592 x 3456, 3200 x 2400, 3200 x 1800, 3216 x 2144, 2400 x 2400, 1824 x 2432, 2560 x1920, 2560 x 1440, 2544 x 1696, 1920 x 1920, 1440 x 1920, 1920 x 1440, 1920 x 1080, 1920 x 1280, 1440 x 1440, 1104 x 1472, 1600 x 1200, 1536 x 864, 1584 x 1056, 1216 x 1216, 864 x 1152, 1280 x 960, 1280 x 720, 1296 x 864, 960 x 960, 720 x 960, 1024 x 768, 1024 x 576, 1008 x 672, 768 x 768, 576 x 768, 640 x 480, 640 x 360, 624 x 416, 480 x 480, 384 x 512 | |
| Image ratio w:h | 1:1, 4:3, 3:2, 16:9 | |
| Effective pixels | 16 megapixels | |
| Sensor photo detectors | 17 megapixels | |
| Sensor size | Four Thirds (17.3 x 13 mm) | |
| Sensor type | CMOS | |
| Processor | TruePic VI | |
| Image | ||
| ISO | Auto (200 – 25600), 200, 400, 800, 1600, 3200, 6400, 12800, 25600 | |
| White balance presets | 12 | |
| Custom white balance | Yes (1) | |
| Image stabilization | Sensor-shift | |
| Uncompressed format | RAW | |
| Optics & Focus | ||
| Autofocus |
|
|
| Digital zoom | No | |
| Manual focus | Yes (Live view image is magnified when the focus ring is rotated. (at S-AF+MF or MF mode)) | |
| Number of focus points | 35 | |
| Lens mount | Micro Four Thirds | |
| Focal length multiplier | 2× | |
| Screen / viewfinder | ||
| Articulated LCD | Tilting | |
| Screen size | 3″ | |
| Screen dots | 610,000 | |
| Touch screen | Yes | |
| Screen type | Touch control in electrostatic capacitance type OLED monitor | |
| Live view | Yes | |
| Viewfinder type | Electronic | |
| Viewfinder coverage | 100% | |
| Viewfinder magnification | 1.15× (0.57× 35mm equiv.) | |
| Viewfinder resolution | 1,440,000 | |
| Photography features | ||
| Minimum shutter speed | 60 sec | |
| Maximum shutter speed | 1/4000 sec | |
| Aperture priority | Yes | |
| Shutter priority | Yes | |
| Manual exposure mode | Yes | |
| Subject / scene modes | Yes | |
| Built-in flash | No | |
| External flash | Yes (via Hot-shoe (FL-50/FL-50R, FL-36/FL-36R, FL-20, FL-14, FL-300R, FL-600R)) | |
| Flash modes | Auto, On, Off, Red-Eye, Fill-in, Slow Sync (2), Manual (3 levels) | |
| Continuous drive | 9.0 fps | |
| Self-timer | Yes (2 or 12 sec) | |
| Metering modes |
|
|
| Exposure compensation | ±3 (at 1/3 EV, 1/2 EV, 1 EV steps) | |
| AE Bracketing | (2, 3, 5, 7 frames at 1/3 EV, 1/2 EV, 2/3 EV, 1 EV steps) | |
| WB Bracketing | Yes (3 frames in 2, 4, 6 steps selectable in either blue/amber or magenta/green axis) | |
| Videography features | ||
| Resolutions | 1920 x 1080 (60 fps), 1280 x 720 (60, 30 fps), 640 x 480 (30 fps) | |
| Format | H.264, Motion JPEG | |
| Microphone | Stereo | |
| Speaker | Mono | |
| Storage | ||
| Storage types | SD/SDHC/SDXC | |
| Connectivity | ||
| USB |
USB 2.0 (480 Mbit/sec) |
|
| HDMI | Yes (Mini HDMI type-D) | |
| Wireless | Eye-Fi Connected | |
| Remote control | Yes (Optional (RM-UC1)) | |
| Physical | ||
| Environmentally sealed | Yes | |
| Durability | Waterproof, Shockproof | |
| Battery | Battery Pack | |
| Battery description | Lithium-Ion BLN-1 rechargeable battery & charger | |
| Weight (inc. batteries) | 425 g (0.94 lb / 14.99 oz) | |
| Dimensions | 122 x 89 x 43 mm (4.8 x 3.5 x 1.69″) | |
| Other features | ||
| Timelapse recording | No | |
| GPS | None | |
