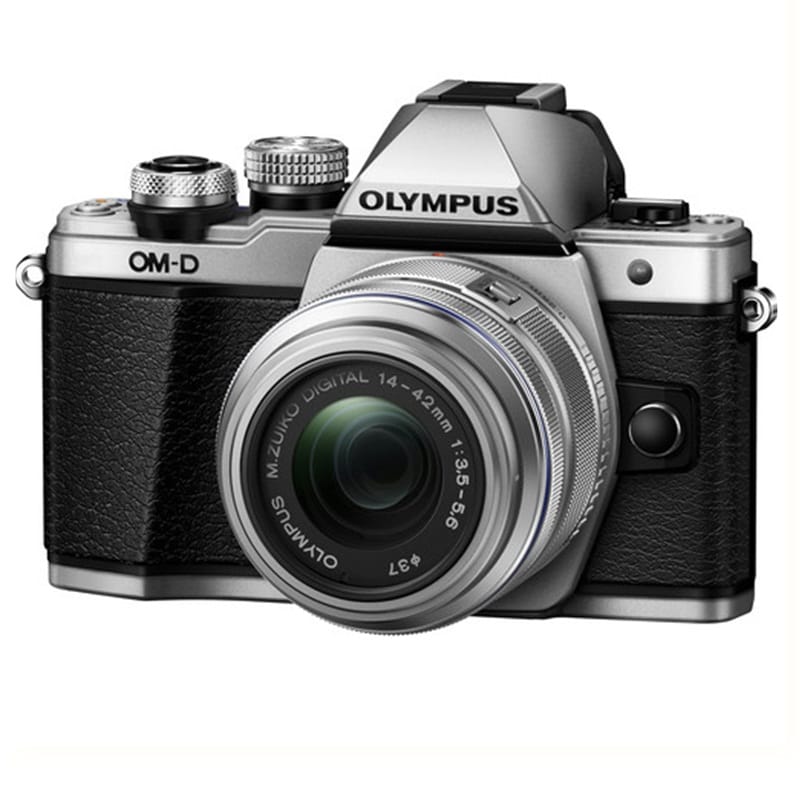

Olympus OM-D E-M10 Mark II Specifications - Olympus OM-D E-M10 Mark II Sample photos - Explore a collection of sample images captured with the Olympus OM-D E-M10 Mark II.
| Body type | ||
|---|---|---|
| Body type | SLR-style mirrorless | |
| Sensor | ||
| Max resolution | 4608 x 3456 | |
| Image ratio w:h | 1:1, 4:3, 3:2, 16:9 | |
| Effective pixels | 16 megapixels | |
| Sensor photo detectors | 17 megapixels | |
| Sensor size | Four Thirds (17.3 x 13 mm) | |
| Sensor type | CMOS | |
| Processor | TruePic VII | |
| Image | ||
| ISO | Auto, 200 – 25600, expands to 100-25600 | |
| Boosted ISO (minimum) | 100 | |
| White balance presets | 7 | |
| Custom white balance | Yes (4 slots) | |
| Image stabilization | Sensor-shift | |
| Image stabilization notes | 5-axis image stabilization (yaw/pitch/roll/vertical/horizontal) | |
| Uncompressed format | RAW | |
| JPEG quality levels | Super fine, fine, normal, basic | |
| Optics & Focus | ||
| Autofocus |
|
|
| Manual focus | Yes | |
| Number of focus points | 81 | |
| Lens mount | Micro Four Thirds | |
| Focal length multiplier | 2× | |
| Screen / viewfinder | ||
| Articulated LCD | Tilting | |
| Screen size | 3″ | |
| Screen dots | 1,040,000 | |
| Touch screen | Yes (Focus, shutter release, AF point selection, menus, image playback) | |
| Screen type | TFT LCD | |
| Live view | Yes | |
| Viewfinder type | Electronic | |
| Viewfinder coverage | 100% | |
| Viewfinder magnification | 1.23× (0.62× 35mm equiv.) | |
| Viewfinder resolution | 2,360,000 | |
| Photography features | ||
| Minimum shutter speed | 60 sec | |
| Maximum shutter speed | 1/4000 sec | |
| Maximum shutter speed (electronic) | 1/16000 sec | |
| Aperture priority | Yes | |
| Shutter priority | Yes | |
| Manual exposure mode | Yes | |
| Subject / scene modes | Yes | |
| Built-in flash | Yes (Olympus Wireless RC Flash system compatible) | |
| Flash range | 5.80 m (ISO 100) | |
| External flash | Yes (via hot shoe or wirelessly) | |
| Flash modes | Auto, redeye reduction, fill flash, flash off, 1st-curtain slow sync w/redeye, 1st-curtain slow sync, 2nd-curtain slow sync, manual | |
| Continuous drive | 8.0 fps | |
| Self-timer | Yes (12 sec., 2 sec, custom) | |
| Metering modes |
|
|
| Exposure compensation | ±5 (at 1/3 EV, 1/2 EV, 1 EV steps) | |
| AE Bracketing | ±5 (2, 3, 5, 7 frames at 1/3 EV, 2/3 EV, 1 EV steps) | |
| WB Bracketing | Yes | |
| Videography features | ||
| Resolutions | 1920 x 1080 (60p/30p/24p), 1280 x 720 (60p/30p/24p), 640 x 480 (30 fps) | |
| Format | H.264, Motion JPEG | |
| Microphone | Stereo | |
| Speaker | Mono | |
| Storage | ||
| Storage types | SD/SDHC/SDXC | |
| Connectivity | ||
| USB |
USB 2.0 (480 Mbit/sec) |
|
| HDMI | Yes (micro-HDMI) | |
| Microphone port | No | |
| Headphone port | No | |
| Wireless | Built-In | |
| Wireless notes | 802.11b/g/n with smartphone app | |
| Remote control | Yes (Optional Remote cable RM-UC1) | |
| Physical | ||
| Environmentally sealed | No | |
| Battery | Battery Pack | |
| Battery description | BLS-50 lithium-ion battery & charger | |
| Battery Life (CIPA) | 320 | |
| Weight (inc. batteries) | 390 g (0.86 lb / 13.76 oz) | |
| Dimensions | 120 x 83 x 47 mm (4.72 x 3.27 x 1.85″) | |
| Other features | ||
| Orientation sensor | Yes | |
| Timelapse recording | Yes (Up to 999 shots. Can create 4K / 5 fps video) | |
| GPS | None | |
| GPS notes | via smartphone | |
