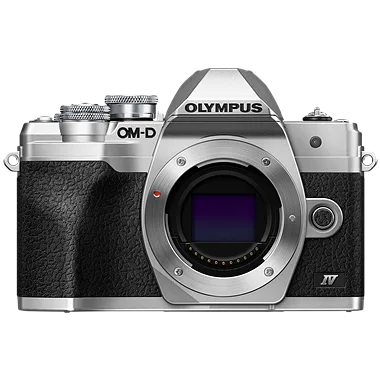

Olympus OM-D E-M10 Specifications - Olympus OM-D E-M10 Sample photos - Explore a collection of sample images captured with the Olympus OM-D E-M10.
| Body type | ||
|---|---|---|
| Body type | SLR-style mirrorless | |
| Sensor | ||
| Max resolution | 4608 x 3456 | |
| Other resolutions | 3200 x 2400, 1280 x 960 | |
| Image ratio w:h | 1:1, 4:3, 3:2, 16:9 | |
| Effective pixels | 16 megapixels | |
| Sensor photo detectors | 17 megapixels | |
| Sensor size | Four Thirds (17.3 x 13 mm) | |
| Sensor type | CMOS | |
| Processor | TruePic VII | |
| Image | ||
| ISO | Auto, 200 – 25600 | |
| Boosted ISO (minimum) | 100 | |
| White balance presets | 7 | |
| Custom white balance | Yes (4 slots) | |
| Image stabilization | Sensor-shift | |
| Image stabilization notes | 3-axis image stabilization (yaw/pitch/roll) | |
| Uncompressed format | RAW | |
| JPEG quality levels | Super fine, fine, normal, basic | |
| Optics & Focus | ||
| Autofocus |
|
|
| Manual focus | Yes | |
| Number of focus points | 81 | |
| Lens mount | Micro Four Thirds | |
| Focal length multiplier | 2× | |
| Screen / viewfinder | ||
| Articulated LCD | Tilting | |
| Screen size | 3″ | |
| Screen dots | 1,037,000 | |
| Touch screen | Yes (Shutter release, Enlargement, Live Guide, AF area selection, AF area enlargement and decrease, Frame forward/backward, Enlargement playback, Super Control Panel, Art Filter selection, Scene mode selection, Wi-Fi connection) | |
| Screen type | TFT LCD | |
| Live view | Yes | |
| Viewfinder type | Electronic | |
| Viewfinder coverage | 100% | |
| Viewfinder magnification | 1.15× (0.57× 35mm equiv.) | |
| Viewfinder resolution | 1,440,000 | |
| Photography features | ||
| Minimum shutter speed | 60 sec | |
| Maximum shutter speed | 1/4000 sec | |
| Aperture priority | Yes | |
| Shutter priority | Yes | |
| Manual exposure mode | Yes | |
| Subject / scene modes | Yes | |
| Built-in flash | Yes (Olympus Wireless RC Flash system compatible) | |
| Flash range | 5.80 m (ISO100) | |
| External flash | Yes (FL-50R, FL-36R, FL-20, FL-14, FL-300R, FL-600R) | |
| Flash modes | Flash Auto, Redeye, Fill-in, Flash Off, Red-eye Slow sync.(1st curtain), Slow sync.(1st curtain), Slow sync.(2nd curtain), Manual（1/1（FULL）～1/64） | |
| Continuous drive | 8.0 fps | |
| Self-timer | Yes (12 sec., 2 sec.,custom (Waiting time 1-30sec.,Shooting interval 0.5/1/2/3sec.,Number of shots 1-10)) | |
| Metering modes |
|
|
| Exposure compensation | ±5 (at 1/3 EV, 1/2 EV, 1 EV steps) | |
| AE Bracketing | ±5 (2, 3, 5, 7 frames at 1/3 EV, 2/3 EV, 1 EV steps) | |
| WB Bracketing | Yes | |
| Videography features | ||
| Resolutions | 1920 x 1080 (30p), 1280 x 720 (30p), 640 x 480 (30 fps) | |
| Format | H.264, Motion JPEG | |
| Microphone | Stereo | |
| Speaker | Mono | |
| Storage | ||
| Storage types | SD/SDHC/SDXC | |
| Connectivity | ||
| USB |
USB 2.0 (480 Mbit/sec) |
|
| HDMI | Yes (micro HDMI) | |
| Wireless | Built-In | |
| Wireless notes | Live View, Rec View, Wireless Touch AF shutter, Wireless Release, Power Off | |
| Remote control | Yes (Optional Remote cable RM-UC1) | |
| Physical | ||
| Environmentally sealed | No | |
| Battery | Battery Pack | |
| Battery description | BLS-5 Li-ion battery and charger | |
| Battery Life (CIPA) | 320 | |
| Weight (inc. batteries) | 396 g (0.87 lb / 13.97 oz) | |
| Dimensions | 119 x 82 x 46 mm (4.69 x 3.24 x 1.81″) | |
| Other features | ||
| Orientation sensor | Yes | |
| Timelapse recording | Yes (Interval Time 1 sec. – 24 Hours, Max 999 frames. Available on making Time-lapse movie automatically) | |
| GPS | Optional | |
| GPS notes | uses Smartphone GPS data | |
