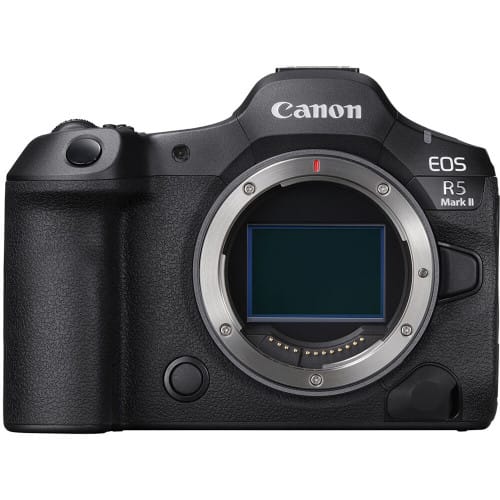

Canon EOS R5 Mark II Specifications - Canon EOS R5 Mark II Sample photos - Explore a collection of sample images captured with the Canon EOS R5 Mark II.
| Body type | ||
|---|---|---|
| Body type | SLR-style mirrorless | |
| Sensor | ||
| Max resolution | 8192 x 5464 | |
| Image ratio w:h | 1:1, 4:3, 3:2, 16:9 | |
| Effective pixels | 45 megapixels | |
| Sensor photo detectors | 50 megapixels | |
| Sensor size | Full frame (36 x 24 mm) | |
| Sensor type | Stacked CMOS | |
| Processor | Digic X with Digic Accelerator co-processor | |
| Image | ||
| ISO | 100-51200 | |
| Boosted ISO (minimum) | 50 | |
| Boosted ISO (maximum) | 102400 | |
| White balance presets | 6 | |
| Custom white balance | Yes (5 slots) | |
| Image stabilization | Sensor-shift | |
| Image stabilization notes | Co-ordinates with in-lens IS | |
| CIPA image stabilization rating | 8.5 stop(s) | |
| Uncompressed format | RAW | |
| Optics & Focus | ||
| Autofocus |
|
|
| Manual focus | Yes | |
| Number of focus points | 5850 | |
| Lens mount | Canon RF | |
| Screen / viewfinder | ||
| Articulated LCD | Fully articulated | |
| Screen size | 3.2″ | |
| Screen dots | 2,100,000 | |
| Touch screen | Yes | |
| Live view | Yes | |
| Viewfinder type | Electronic | |
| Viewfinder coverage | 100% | |
| Viewfinder magnification | 0.76× | |
| Viewfinder resolution | 5,760,000 | |
| Photography features | ||
| Minimum shutter speed | 30 sec | |
| Maximum shutter speed | 1/8000 sec | |
| Maximum shutter speed (electronic) | 1/32000 sec | |
| Aperture priority | Yes | |
| Shutter priority | Yes | |
| Manual exposure mode | Yes | |
| Built-in flash | No | |
| External flash | Yes (Hotshoe and sync socket) | |
| Continuous drive | 30.0 fps | |
| Self-timer | Yes (2 or 10 sec) | |
| Metering modes |
|
|
| Exposure compensation | ±3 (at 1/3 EV, 1/2 EV steps) | |
| WB Bracketing | Yes (+/- 3 steps B/A or M/G) | |
| Videography features | ||
| Format | H.264, H.265 | |
| Microphone | Stereo | |
| Speaker | Mono | |
| Storage | ||
| Connectivity | ||
| USB |
USB 3.2 Gen 2 (10 GBit/sec) |
|
| USB charging | Yes | |
| HDMI | Yes (Type A (Full-sized)) | |
| Microphone port | Yes | |
| Headphone port | Yes | |
| Remote control | Yes | |
| Physical | ||
| Environmentally sealed | Yes | |
| Battery | Battery Pack | |
| Battery description | LP-E6P | |
| Battery Life (CIPA) | 540 | |
| Weight (inc. batteries) | 746 g (1.64 lb / 26.31 oz) | |
| Dimensions | 138 x 98 x 88 mm (5.43 x 3.86 x 3.46″) | |
| Other features | ||
| Orientation sensor | Yes | |
| Timelapse recording | Yes | |
