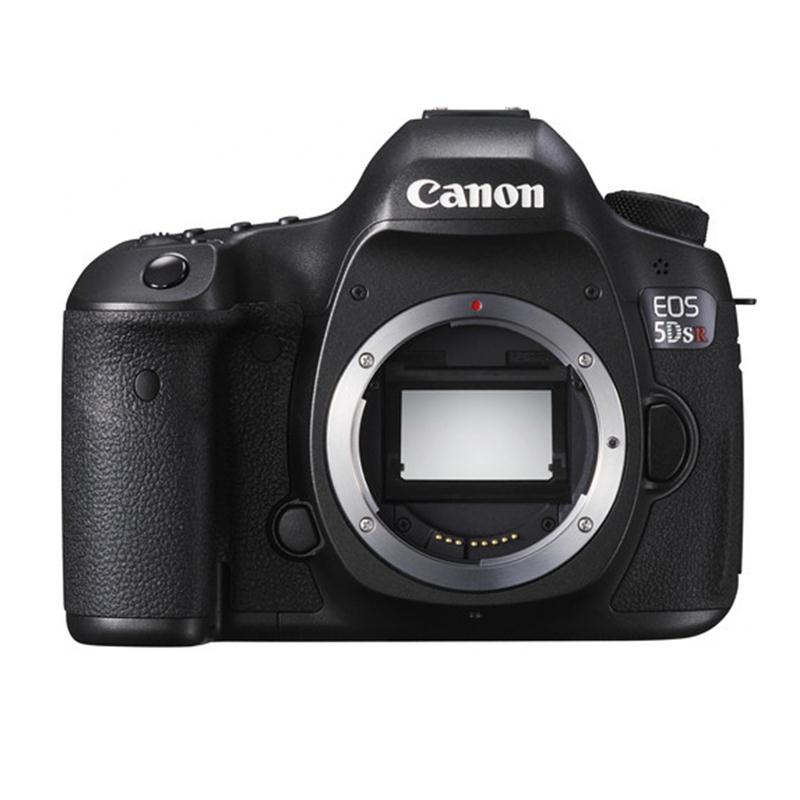

Canon EOS 5DS R Specifications - Canon EOS 5DS R Sample photos - Explore a collection of sample images captured with the Canon EOS 5DS R.
| Body type | ||
|---|---|---|
| Body type | Mid-size SLR | |
| Sensor | ||
| Max resolution | 8688 x 5792 | |
| Image ratio w:h | 3:2, 16:9 | |
| Effective pixels | 51 megapixels | |
| Sensor photo detectors | 53 megapixels | |
| Sensor size | Full frame (36 x 24 mm) | |
| Sensor type | CMOS | |
| Processor | Dual DIGIC 6 | |
| Image | ||
| ISO | Auto, 100-6400 (expandable to 50-12800) | |
| Boosted ISO (minimum) | 50 | |
| Boosted ISO (maximum) | 12800 | |
| White balance presets | 8 | |
| Custom white balance | Yes | |
| Image stabilization | No | |
| Uncompressed format | RAW | |
| JPEG quality levels | Fine, normal | |
| Optics & Focus | ||
| Autofocus |
|
|
| Manual focus | Yes | |
| Number of focus points | 61 | |
| Lens mount | Canon EF | |
| Focal length multiplier | 1× | |
| Screen / viewfinder | ||
| Articulated LCD | Fixed | |
| Screen size | 3.2″ | |
| Screen dots | 1,040,000 | |
| Touch screen | No | |
| Screen type | ClearView II TFT-LCD | |
| Live view | Yes | |
| Viewfinder type | Optical (pentaprism) | |
| Viewfinder coverage | 100% | |
| Viewfinder magnification | 0.71× | |
| Photography features | ||
| Minimum shutter speed | 30 sec | |
| Maximum shutter speed | 1/8000 sec | |
| Aperture priority | Yes | |
| Shutter priority | Yes | |
| Manual exposure mode | Yes | |
| Subject / scene modes | No | |
| Built-in flash | No | |
| External flash | Yes (via hot shoe and PC sync port) | |
| Continuous drive | 5.0 fps | |
| Self-timer | Yes (2 or 10 secs) | |
| Metering modes |
|
|
| Exposure compensation | ±5 (at 1/3 EV, 1/2 EV steps) | |
| AE Bracketing | ±3 (3 frames at 1/3 EV, 1/2 EV steps) | |
| WB Bracketing | Yes | |
| Videography features | ||
| Resolutions | 1920 x 1080 (30p, 25p, 24p), 1280 x 720 (60p, 50p), 640 x 480 (30p, 25p) | |
| Format | H.264 | |
| Videography notes | Supports ALL-I and IPB compression | |
| Microphone | Mono | |
| Speaker | Mono | |
| Storage | ||
| Storage types | SD/SDHC/SDXC (UHS-I compatible), CompactFlash | |
| Connectivity | ||
| USB | USB 3.0 (5 GBit/sec) | |
| HDMI | Yes (mini-HDMI) | |
| Microphone port | Yes | |
| Headphone port | No | |
| Remote control | Yes (Wired and wireless) | |
| Physical | ||
| Environmentally sealed | Yes (dust and water-resistent) | |
| Battery | Battery Pack | |
| Battery description | LP-E6 lithium-ion battery & charger | |
| Battery Life (CIPA) | 700 | |
| Weight (inc. batteries) | 930 g (2.05 lb / 32.80 oz) | |
| Dimensions | 152 x 116 x 76 mm (5.98 x 4.57 x 2.99″) | |
| Other features | ||
| Orientation sensor | Yes | |
| Timelapse recording | Yes | |
| GPS | None | |
