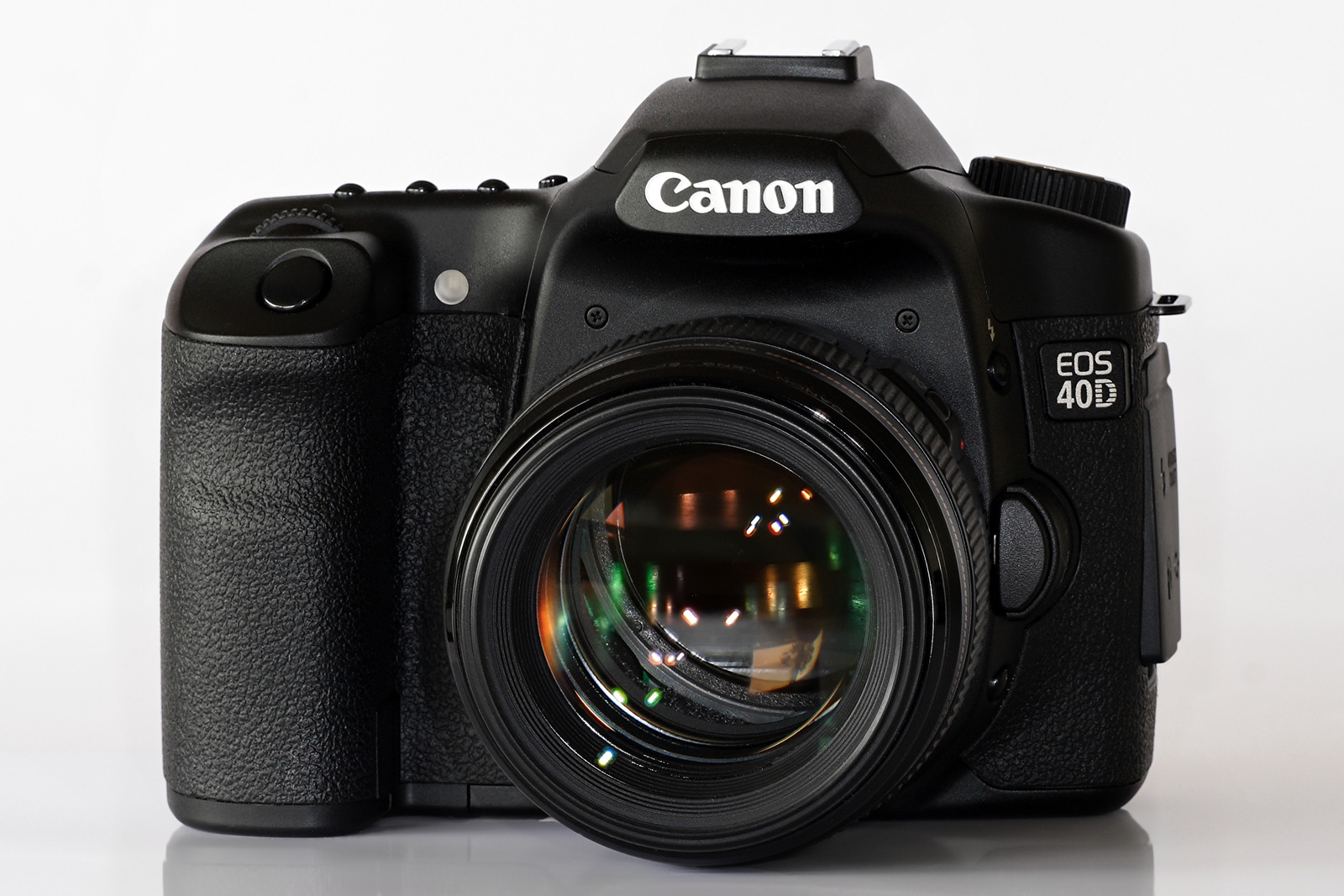

Canon EOS 40D Specifications - Canon EOS 40D Sample photos - Explore a collection of sample images captured with the Canon EOS 40D.
| Body type | ||
|---|---|---|
| Body type | Mid-size SLR | |
| Sensor | ||
| Max resolution | 3888 x 2592 | |
| Other resolutions | 2816 x 1880, 1936 x 1288 | |
| Image ratio w:h | 3:2 | |
| Effective pixels | 10 megapixels | |
| Sensor photo detectors | 11 megapixels | |
| Sensor size | APS-C (22.2 x 14.8 mm) | |
| Sensor type | CMOS | |
| Image | ||
| ISO | Auto, 100, 200, 400, 800, 1600, 3200 (H) | |
| Boosted ISO (maximum) | 3200 | |
| White balance presets | 6 | |
| Custom white balance | Yes | |
| Image stabilization | No | |
| Uncompressed format | RAW | |
| JPEG quality levels | Fine, Normal | |
| Optics & Focus | ||
| Autofocus |
|
|
| Digital zoom | No | |
| Manual focus | Yes | |
| Number of focus points | 9 | |
| Lens mount | Canon EF/EF-S | |
| Focal length multiplier | 1.6× | |
| Screen / viewfinder | ||
| Articulated LCD | Fixed | |
| Screen size | 3″ | |
| Screen dots | 230,000 | |
| Touch screen | No | |
| Live view | Yes | |
| Viewfinder type | Optical (pentaprism) | |
| Viewfinder coverage | 95% | |
| Viewfinder magnification | 0.95× (0.59× 35mm equiv.) | |
| Photography features | ||
| Minimum shutter speed | 30 sec | |
| Maximum shutter speed | 1/8000 sec | |
| Aperture priority | Yes | |
| Shutter priority | Yes | |
| Built-in flash | Yes (pop-up) | |
| Flash range | 12.00 m (ISO 100) | |
| External flash | Yes (hot-shoe, E-TTL II) | |
| Flash modes | Auto, On, Red-eye reduction, Off | |
| Continuous drive | 6.5 fps | |
| Self-timer | Yes (2 or 10 sec) | |
| Exposure compensation | ±2 (at 1/3 EV, 1/2 EV steps) | |
| Videography features | ||
| Storage | ||
| Storage types | Compact Flash (Type I or II) | |
| Storage included | None | |
| Connectivity | ||
| USB | USB 2.0 (480 Mbit/sec) | |
| HDMI | No | |
| Remote control | Yes (N3 connector) | |
| Physical | ||
| Environmentally sealed | No | |
| Battery | Battery Pack | |
| Weight (inc. batteries) | 822 g (1.81 lb / 29.00 oz) | |
| Dimensions | 146 x 108 x 74 mm (5.75 x 4.25 x 2.91″) | |
| Other features | ||
| Orientation sensor | Yes | |
| Timelapse recording | Yes (by USB cable, TC-80N3 remote controller and PC) | |
